Brake Rod Adjuster - Unthreaded

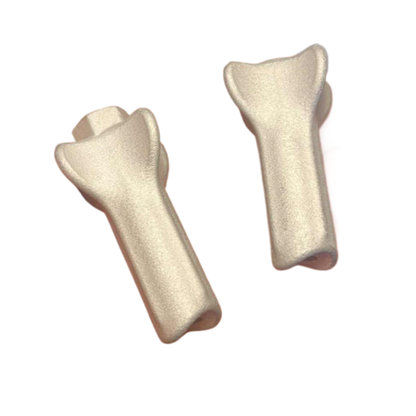

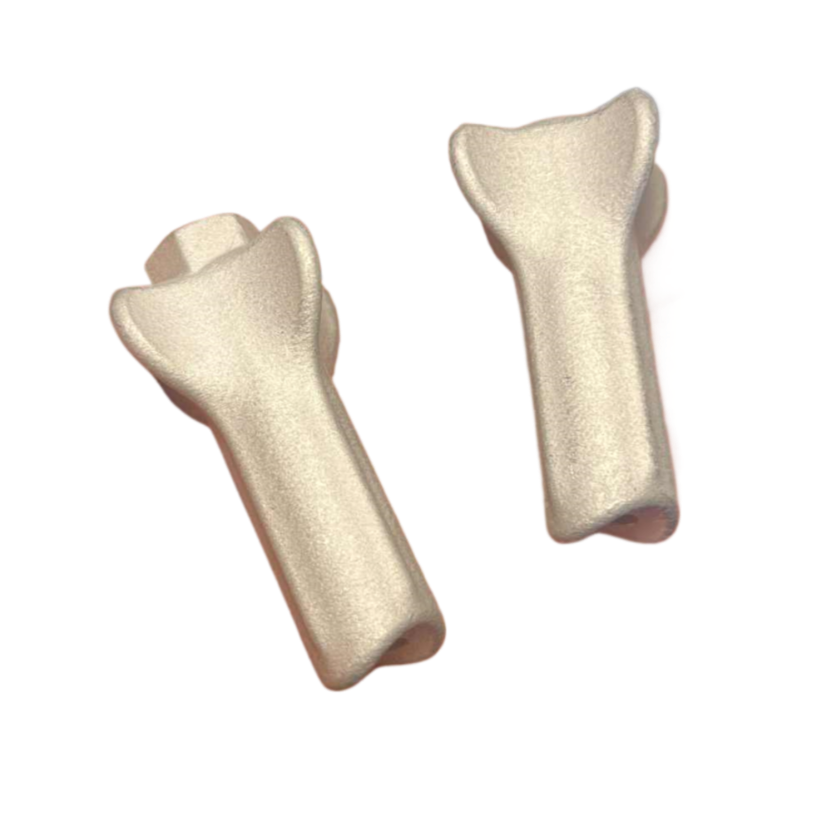

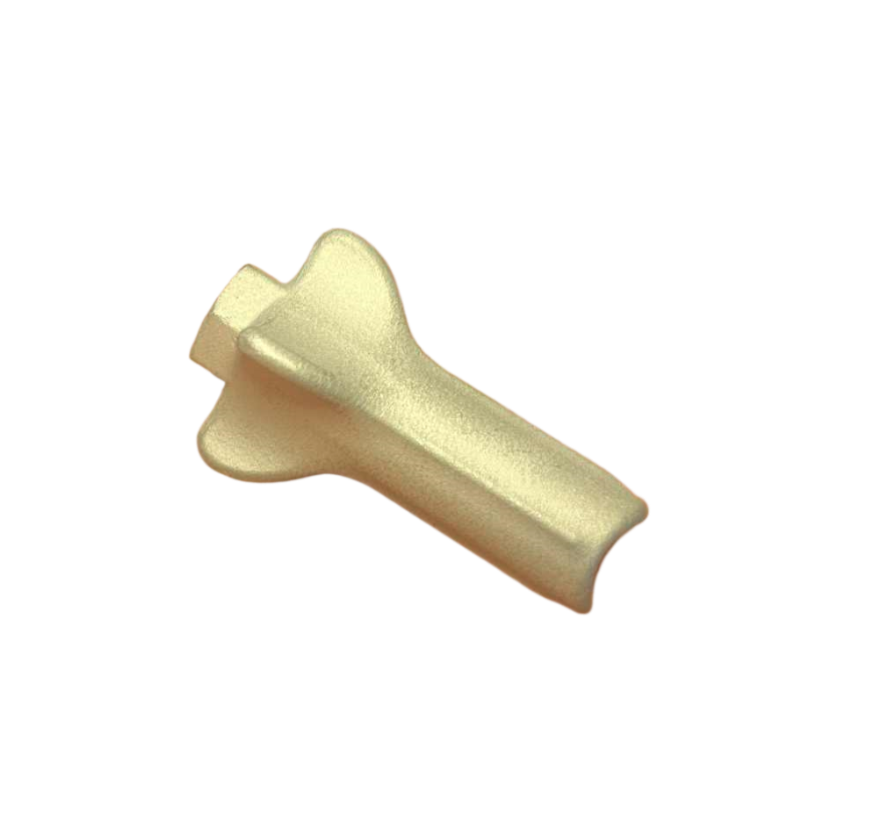

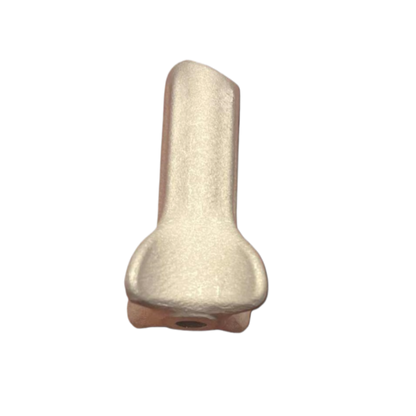

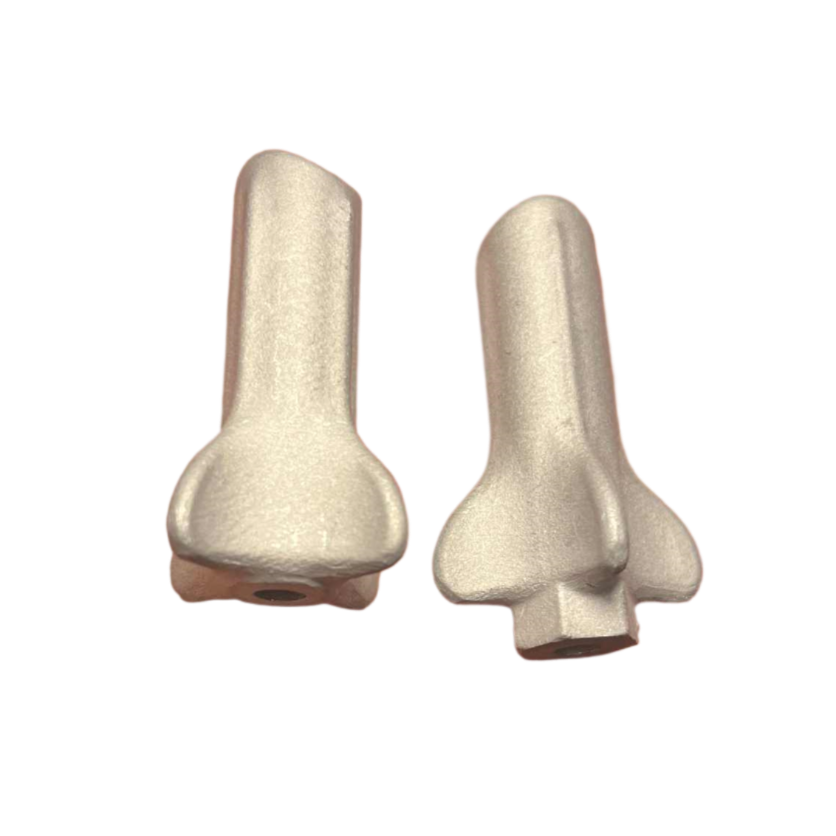

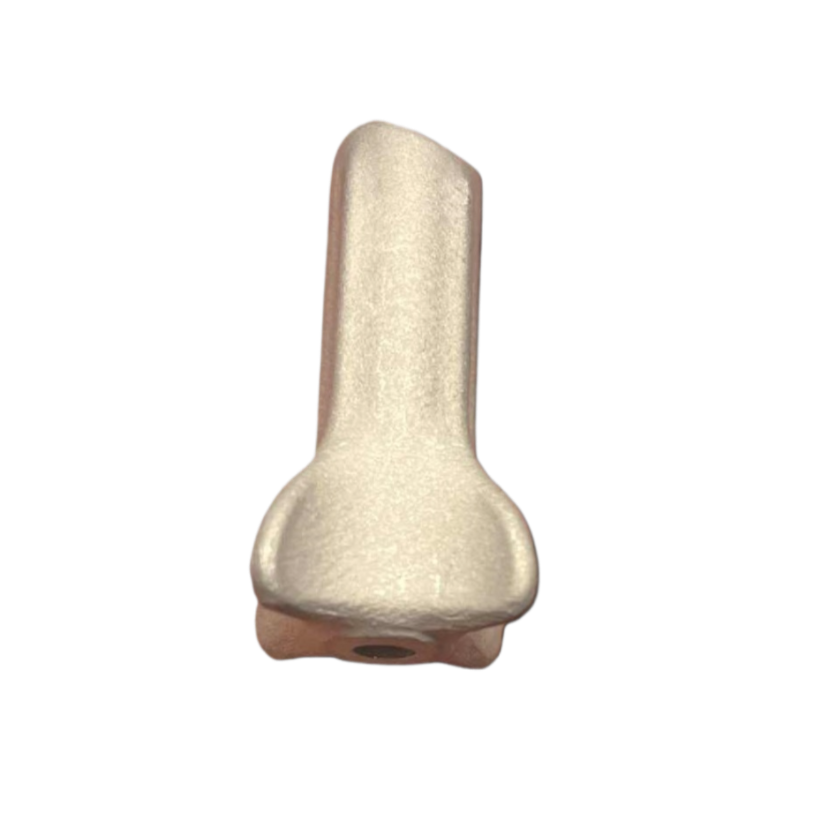

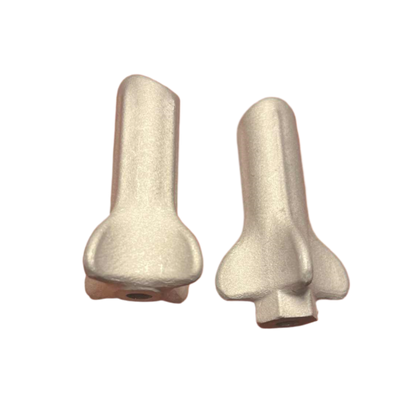

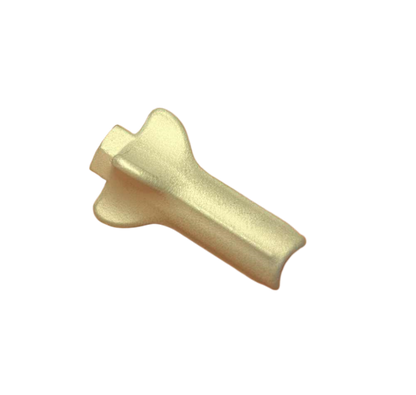

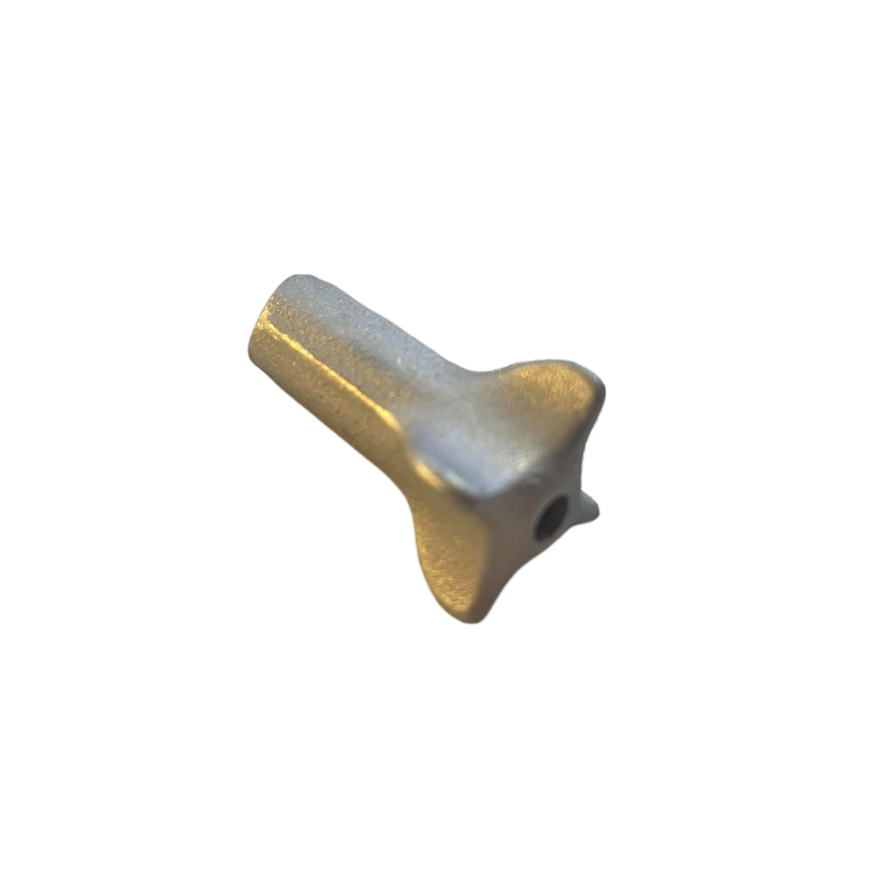

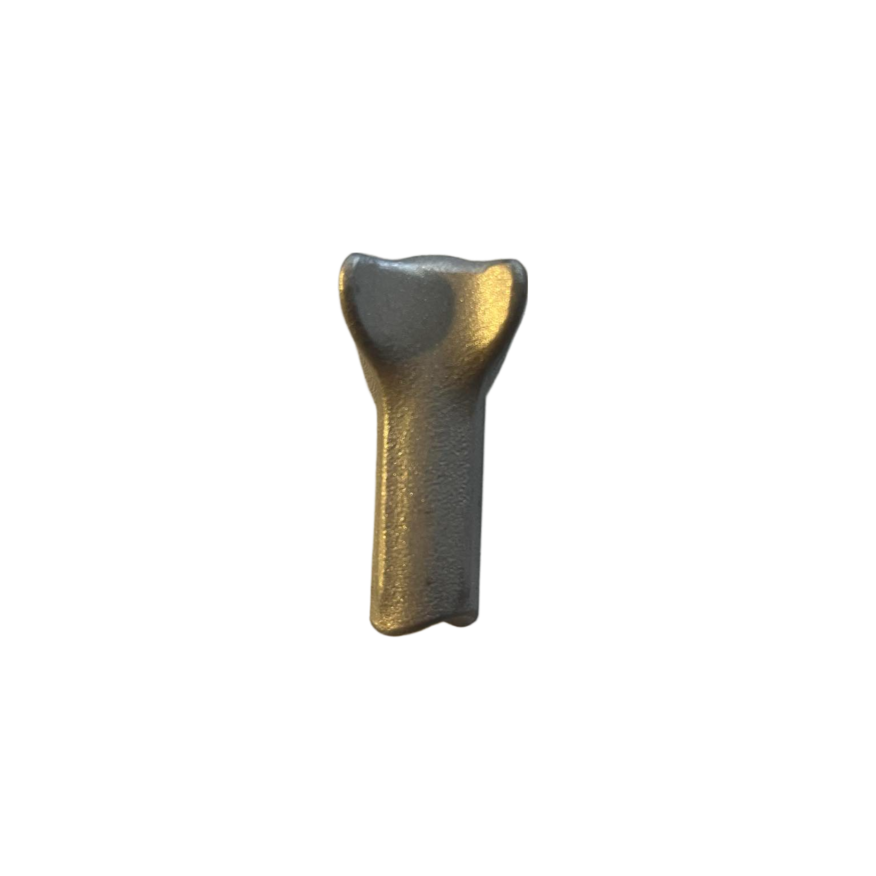

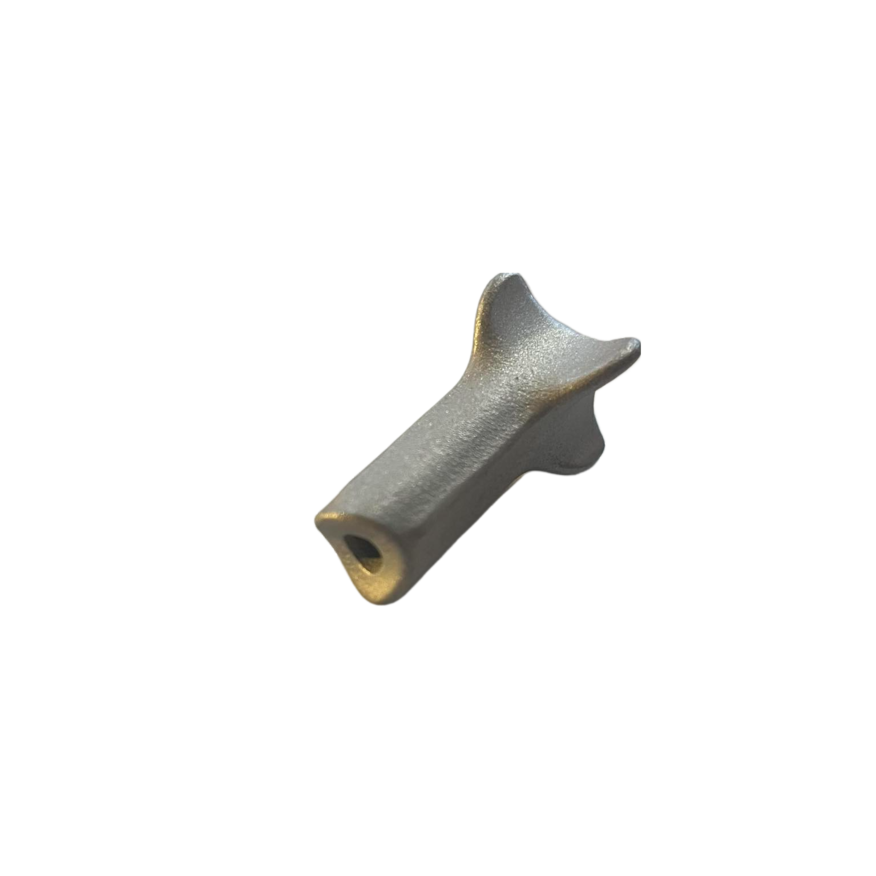

Custom brake rod adjuster with 4 curved fins to make adjustment less painful, while looking good!

The adjuster is:

• 43.66mm long (1-23/32")
• 12.7mm (1/2") diameter at the narrow end.
• 38.1mm (1-7/64") across the fins

After careful consideration this brake rod adjuster is being sold un-threaded with a.5.2-5.25mm (13/64") hole which allows all common 1/4", and M6 threads to be tapped as required.

I have sold this unthreaded because:

• You don't know the thread of your rod, I don't want you ordering the wrong part.
• You have made your own rod with a thread of your choice that is non triumph.
• You may not be fitting this to a triumph.....but I forgive you!

Common threads are as follows:

• Triumphs 1/4" CEI, 1/4" BSF, 1/4" UNF dependant on year.
• Japanese: Generally M6x1mm
• Norton: 1/4" BSF, and 1/4" CEI/BSCy dependant on year
