Dual Headlight Brackets - Cross (Large Radius)
Dual Headlight Brackets - Cross (Large Radius)
Regular price
$47.50 AUD
Regular price
Sale price
$47.50 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

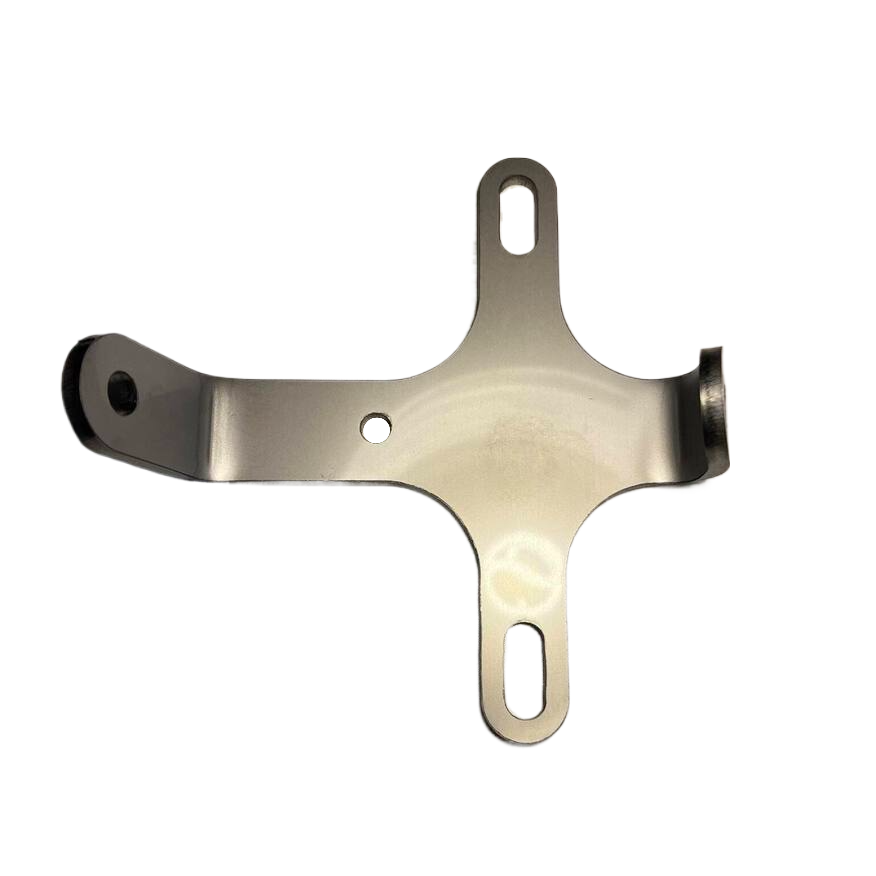

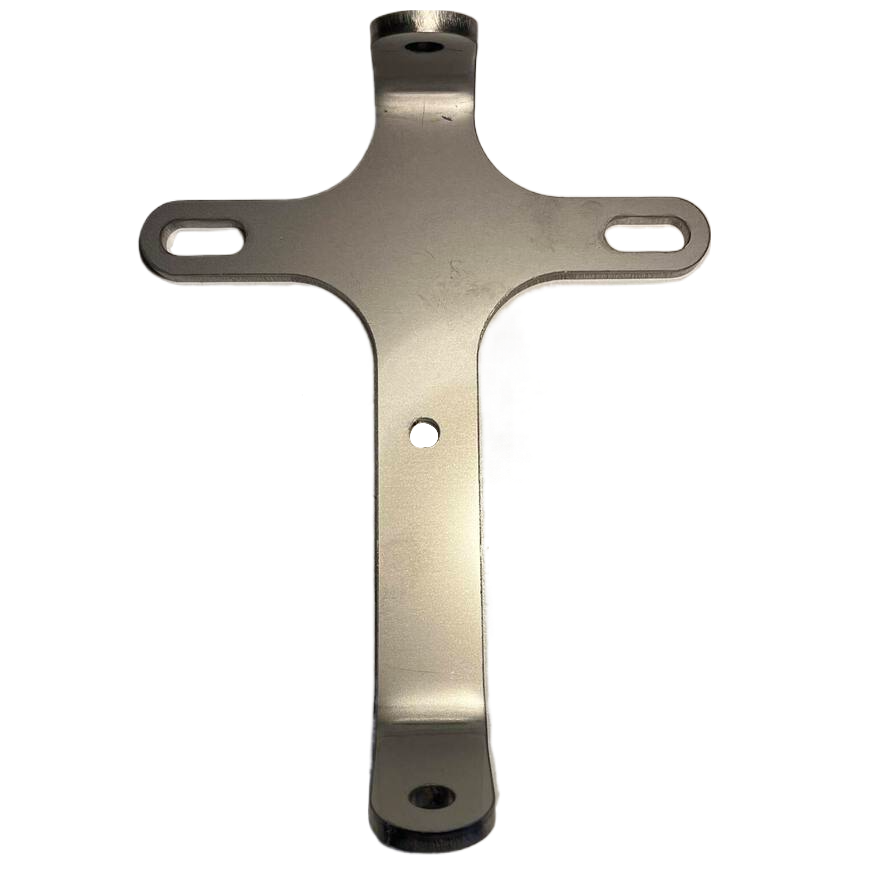

The classic dual headlight bracket design with a larger inner radius and updated to make cabling a little tidier, and specifically made in two options so that your lights don't get too close to each other.
Fits - Pre Unit Triumphs, Harley Narrow Glide/33.4mm/35mm Yokes, and many other bikes, but please check your measurements.
Variants
- 4-1/2"" Bottom Mount with 4-9/16" (116.12mm) light to light spacing
- 5-3/4" Bottom Mount with 6-1/8" (155.584mm) light to light spacing
Details
Both brackets have the following features:
- Made from 5mm 304 Stainless steel, supplied raw.
- 10mm Headlight Mounting Holes so you can modify to suit your light.
- Max Bolt Centre: 5-3/8" (136.53mm)
- Min Bolt Centre: 4-5/16" (109.53mm)
- Mounting Bolt Slot Height: 3/8" (10mm)
- Lower Light Cable Clearance Hole Diameter: 8mm
Please check measurements carefully when ordering, and make sure you have selected the right option for your bike. You may need spacers or washers between this bracket the yoke/tree on your bike dependant on the type of yoke you are running.
Not quite what you need?
If you need a specific custom bracket similar to this I can create it for you, email me for more information on my design services.
