Timing Cover - Compatible with Triumph Pre Unit (Generator)
Timing Cover - Compatible with Triumph Pre Unit (Generator)
Regular price
$1,000.00 AUD
Regular price
Sale price
$1,000.00 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

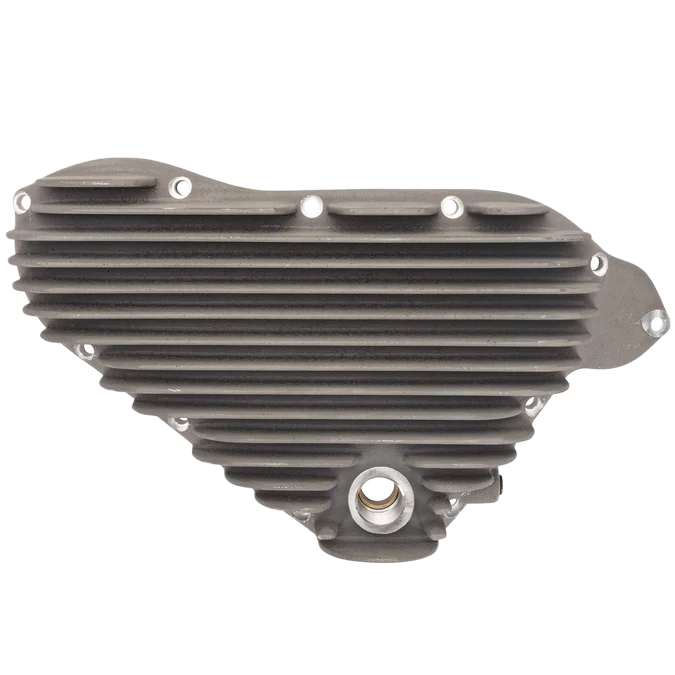

Finally the traditional custom finned timing cover for Triumphs has evolved and returned to market for good!
This cover was a 4 year passion project culminating in the best and most authentic finned cover on the market today. All the flaws of the 40's-60's versions have been carefully removed while retaining the look and feel that makes theses covers so attractive. they are deliberately not perfect, the are "perfectly-imperfect" honoring the past and engineering it for the future.

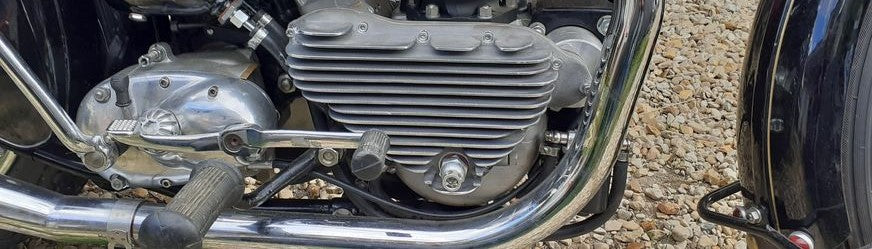

This is the same cover fitted to Tom Heavey's Born-Free winning Triumph "Time-Warp".
Here is the lowdown on what you can expect from the part:
- All made within 50km of my home, supporting local business
- Sand cast in certified AA-601 Aluminum, sourced from local smelter
- Heat Treated T6 to removed porosity, and increase material hardness.
- Aged Grey finish that wears, just like the early race castings.
- All mounting holes, oil galleries, threads, and gasket faces
- CNC machined to exacting tolerances

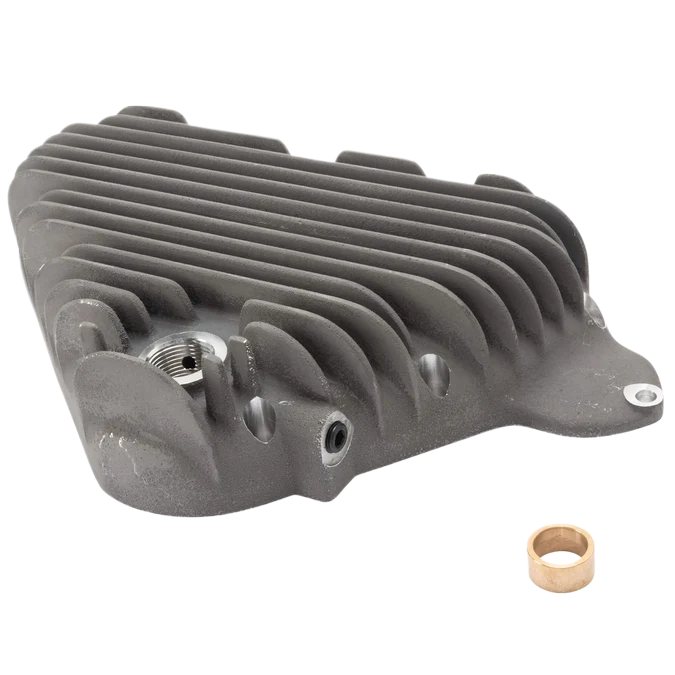

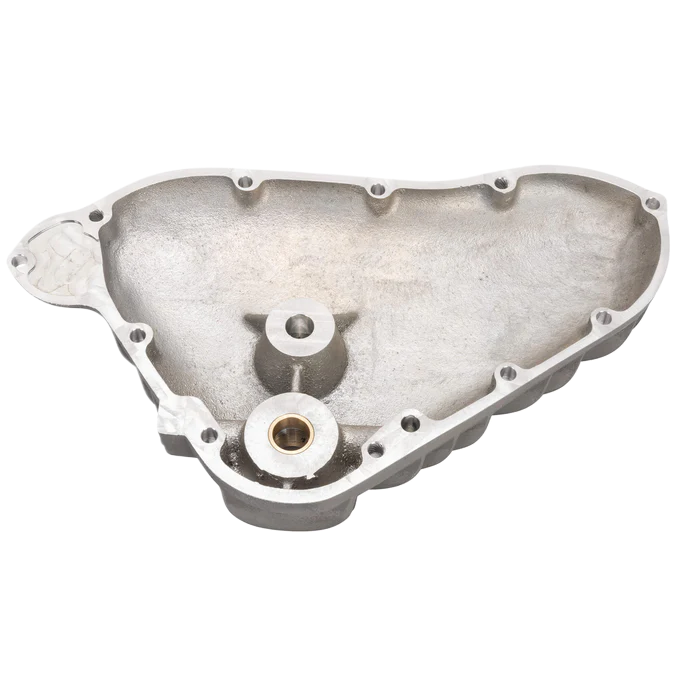

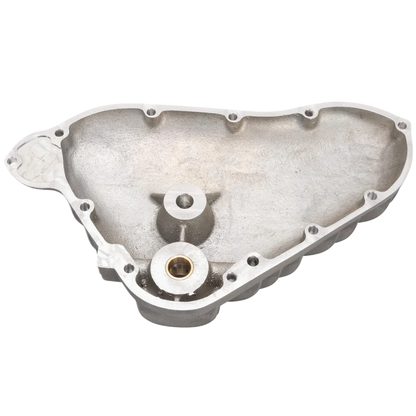

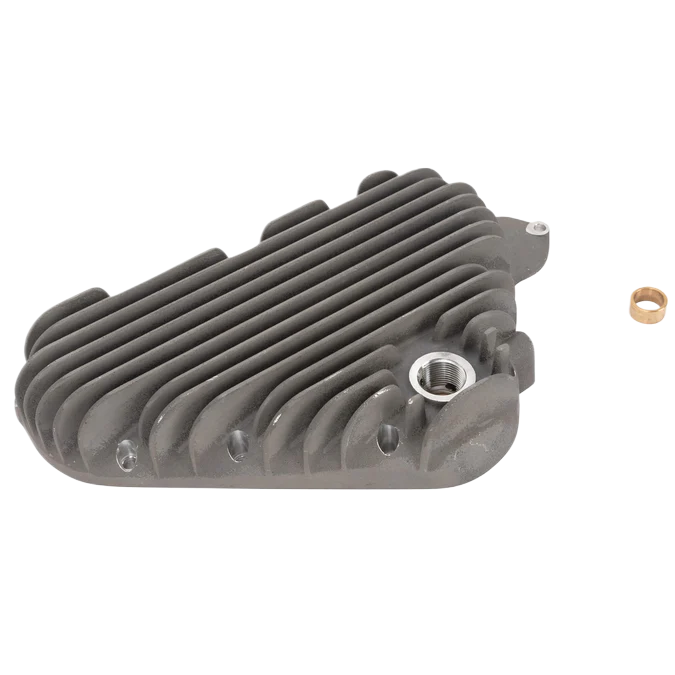

- CNC bronze bushes, standard fitted. (-20 thou supplied for undersized cranks)
- Our cover uses all short timing case bolts.
- 1/8" NPT oil outlet to allow easy oil pressure switch/gauge installation
- Oil transfer dowel flange, prevents loose dowels starving oil supply.
- Extra thickness around the timing bush for oil seal conversions.
- Extra wall thickness to allow Morgo rotary pump modification.
- Detailed manual covering all aspects of the cover.
- Custom Packaging to ensure the cover arrives safely to you.
IMPORTANT
When installing this product you MUST measure your crank and ensure you have correct clearance between the timing bush.
On any Triumph, your oil pressure is your responsibility.
The covers are sold in raw finish, just like the covers of days gone by, they can be polished by you if you wish and they look amazing when this is done well but please be very careful who you choose to polish them, many will say they can, many will fail, and we will not replace your cover if they do.
These are Sand Cast, then CNC machined. The fit will never ever be perfect, nor will any other custom triumph timing cover, anywhere, ever, period. This is because the crankcases vary wildly from the 40's to the 60's, I know because I've spent 4 years measuring them.
What I can say is the my covers are the best fit you can hope to achieve without filing the cases/cover for a perfect fit.......which, is exactly what all the show bike builder have done for years :-)
Enjoy your purchase!
